Radial Shockwave Therapy – Efficient. Easy to use. Mobile.
Mobile radial shockwave therapy system with ballistic, high-energy pulses. For treatment of biological tissues and structures in various pathologies and medical conditions. Unique, easy-to-use system offering shockwave therapy access to all therapists.
Modern technology, innovatively designed
The new enPuls user interface is highly intuitive and easy-to-use. All parameters are optimally designed for a clear layout. Ready for your therapy.
Zimmer MedizinSysteme has created something really special with this new generation of enPuls products. An entire new user experience. New capacitive touch screen technology provides even simpler operation and application.
Radial Shockwaves – Unique and powerful technology
A strong point of light for your Pain Therapy
Radial shockwave therapy (RSWT) is a method for the treatment of superficial orthopedic disorders developed over the past 20 years. A projectile accelerated in the handpiece generates a mechanical pressure wave, which is transferred to the human body by an applicator head and which radiates out in the tissue.
The mechanical energy is absorbed by the tissue and decreases as the distance from the application site increases. The mechanical stress triggers reactions in the tissue that have a positive influence on a wide range of orthopedic and neurological conditions.
The method is used by therapists all over the world with great success. With the enPuls 2.0, Zimmer MedizinSysteme now offers a system that bundles all the advantages of the application in a compact form with the lowest downstream and operating costs that is easy to operate and apply with maximum flexibility and mobility.
The mechanical energy is absorbed by the tissue and decreases as the distance from the application site increases. The mechanical stress triggers reactions in the tissue that have a positive influence on a wide range of orthopedic and neurological conditions.
The method is used by therapists all over the world with great success. With the enPuls 2.0, Zimmer MedizinSysteme now offers a system that bundles all the advantages of the application in a compact form with the lowest downstream and operating costs that is easy to operate and apply with maximum flexibility and mobility.
Applications
enPuls 2.0 is ideal as a system for radial shockwave therapy, for superficial orthopedic problems such as:
- Insertion tendinopathy
- Tendon problems
- Chronic inflammation
- Hypertonic muscle systems
- Myofascial syndromes
- Hemotoma treatments
Videos
Technical Details
Protocols
More than 25 illustrated preset treatment recommendations
Controls
Colour touch-screen for all software operationsRotary control for Energy level and for frequency
Handpiece operation with multi-directional footswitch
Memory / Update
SD-card for indication menu memoryFavourites and adapted programmes (120 places).
Error log / Firmware-Update
Dimensions
32,2 cm x 23,5 cm x 13 cm (L/W/H)
Shockwave Applicator Hand Piece
Ergonomic, with anodized aluminium casing and fan coolingGenerator electromagnetic, integrated
Dimensions 23 cm length, 5 cm diameter (max.)
Weight 0.85 kg (without cable)
Lifetime Minimum warranty for 2.000.000 shocks
Applicator heads Diameters of 6 / 15 (2 pieces) / 25 mm
Tool free exchange possibility
Minimum warranty of 150.000 shocks per applicator head
Power Consumption
100 / 240 VAC / 50/60 Hz, 5/2,5 A
Weight
2.7 kg (without handpiece)
Technology
Compressor free ballistic radial shockwave therapy-system with electromagnetic generator as projectile accelerator
Power Levels / Energy
60 to 185 mJ (equivalent to 1-5 bar)Can be precisely set in 10 mJ intervals (depending on the frequency of 60 mJ to max. 185 mJ)
Modes
Frequencies from 1 to 22 Hz3 Burst modes (4 / 8 / 12 pulses)
Programmes
7 preset programmes, adjustable
Protocols
More than 25 illustrated preset treatment recommendations
EnPuls 2.0 Technology
Softshot – pulse
enPuls 2.0 generates a special form of shockwave with a relatively heavy projectile and a comparatively low impact speed – the enPuls 2.0 softshot shockwave.
The energy is primarily generated by the volume of the pulse and not by the high amplitude and the extremely short rise characteristic of comparable compressed-air devices.
This requires that the shockwaves with rise times of approx. 3.5 µs and the typical energy settings also generated by compressed-air devices pass through the tissue without any change in the form of the wave, because the stress is within the moment of inertia and the module of elasticity of the tissue.
Different from focused shockwaves, which have rise times less than 100 ns and which results in a desired gradation of the wave in the tissue causing cavitation and tissue destruction, with radial shockwaves it is not the exponential effect but simply the amount of energy that triggers the reactive processes.
The slower rise of the wave (approx. 13.5 µs) and the significantly lower peak amplitude mean that enPuls 2.0 does not generate the typical whiplash effect of the shockwave, which makes it easier for the patient to tolerate.
Different from focused shockwaves, which have rise times less than 100 ns and which results in a desired gradation of the wave in the tissue causing cavitation and tissue destruction, with radial shockwaves it is not the exponential effect but simply the amount of energy that triggers the reactive processes.
The slower rise of the wave (approx. 13.5 µs) and the significantly lower peak amplitude mean that enPuls 2.0 does not generate the typical whiplash effect of the shockwave, which makes it easier for the patient to tolerate.
Energy applied—pressure comparison
Comprehensive comparative tests in the laboratory have demonstrated that enPuls 2.0 with equivalent energy settings releases kinetic energy via the applicator comparable to that of a compressed-air-driven system, in which the air pressure applied to accelerate the projectile is the dosage.
Because the kinetic energy is applied to the tissue with similar-sized applicators, the standard units such as mJ/mm² (energy density) can be used because that closely related.
enPuls 2.0 | Compressed-air RSWT-System
60 mJ | 1 bar
90 mJ | 2 bar
120 mJ | 3 bar
185 mJ | 5 bar
Dosage information from treatment protocols can thus be used 1:1.
Mobility

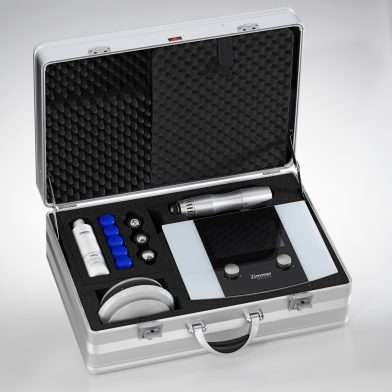

The complete system with all required accessories fits into an easily carried aluminum case, making it very mobile.
Practical extensions and accessories

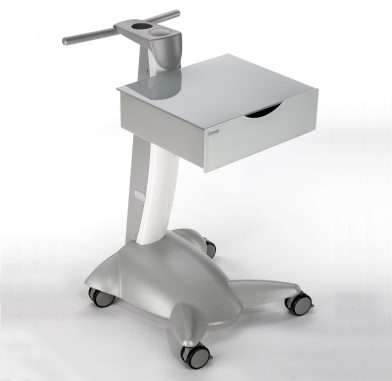

enPuls 2.0 Move Cart
- smoothly movable
- modern design
